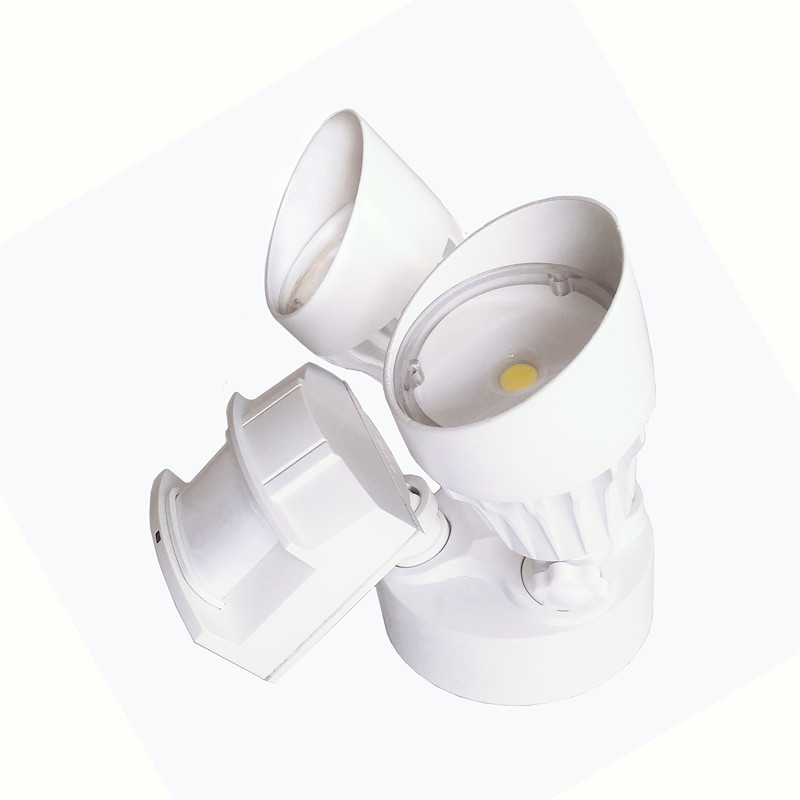

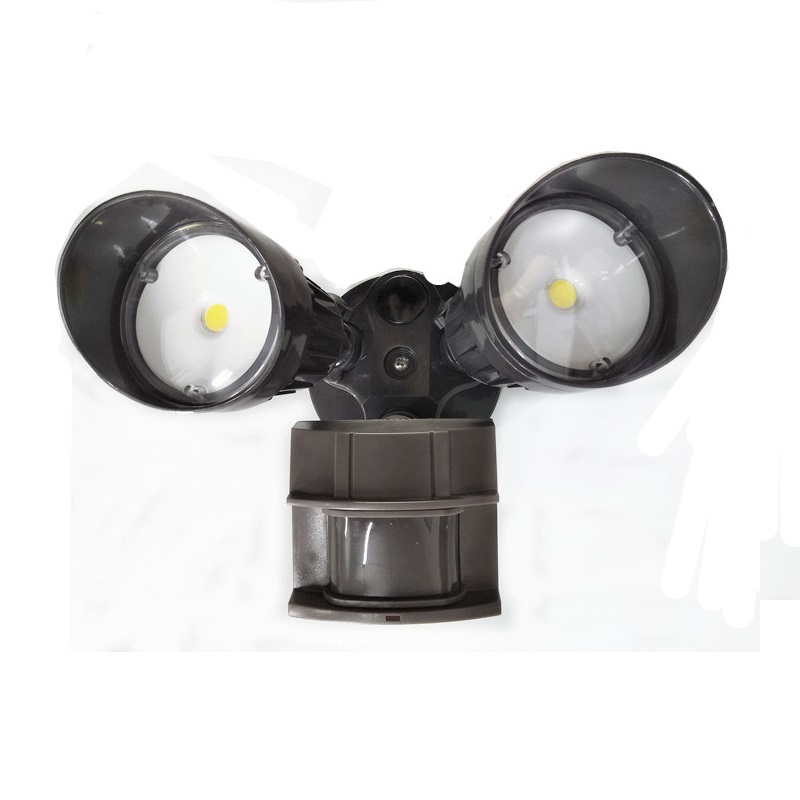

LED Security Motion Sensor Outdoor Lights

Product ID: 7887

Hits: 273

Company: JiangMen H-brand Lighting Co.,Ltd

Keywords: LED Security Motion Sensor Outdoor Lights   /   Dusk to Dawn Waterproof Flood Light   /   LED motion light

Inquiry Favorite

Five Advantages Of Products

  • H-Brand LED Security lights can turn on automatically when the motion is detected, sensing light levels and motion with a range of 180 degrees and max 50 feet. And the light is waterproof which ensures that the light could work outdoor in rainy weather.
  • Super Bright: The 36W outdoor light is rated at 3,600 lumens, which provides efficient lighting for your exterior living environment.
  • Energy Efficient: Motion sensor light is equivalent to 250W incandescent light. The LED security floodlight can help you save hundreds over the lifetime of the light.
  • Adjustable Design: There are four working modes, Test Mode, Auto Mode, On Time Mode and Dusk to Dawn Mode. More choices can meet different demand for each customer. Choose the most appropriate mode for your needs and desires.
  • The LED Security Light with two lamp heads and a motion sensor, a bar-shaped mounting plate and 3 screws, waterproof gasket, 3 wire connectors, mounting bolt, rubber screw plug. And our fan-favorite 5-year warranty and friendly customer service.

Product Details

Product specifications

Power: 30W

Output: 2700lm

CCT: 5000K Daylight

Voltage: AC120 V 50/60Hz

Dimming: Non-dimming

Material: Aluminum + PC

Color: White

Weight: 1.8kg

Package size: 8.27*7.87*6.89 inch

Sensor specification

Sensor type: Infrared sensor

Delay Time: 1 minutes~ 10 minutes (adjustable)

Detection Distance: Max 62ft(adjustable)


Step 1: Installation parts display.

Step 2: Mounting bracket to wall connection box.

Step 3: The wire pass through EVA pad, and use spiral connector connect the junction box wire.

Step 4: Lamp body is aligned with the hole on the bracket of the junction box, and use screw fixed in the middle of the bottom box.

Step 5: Plug the hole with a rubber plug, waterproof and dust proof.

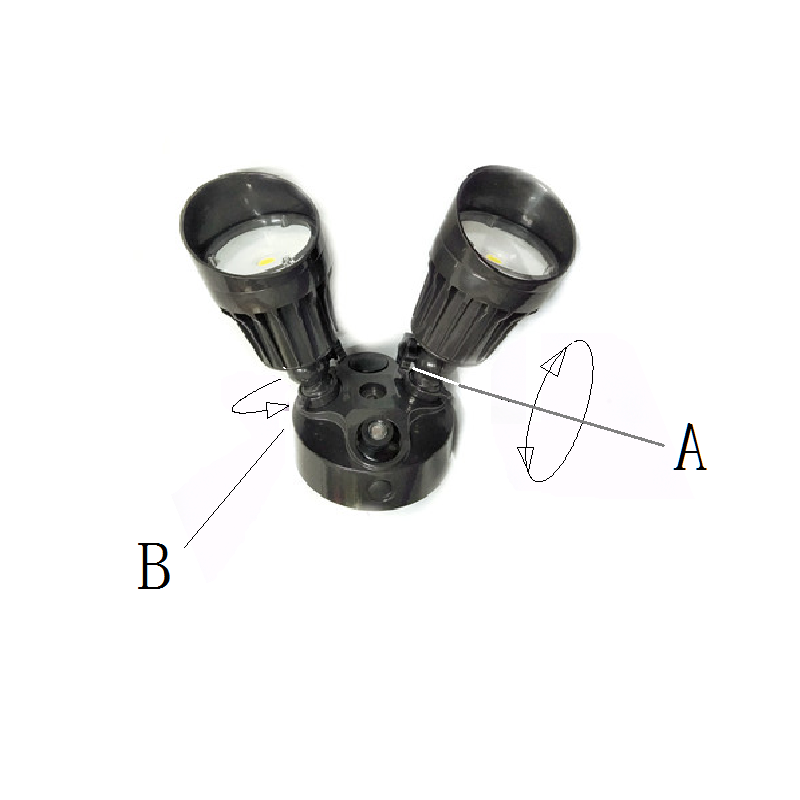

Step 6: Adjust the heads of the lights to the direction you want, and then tight the screws. Adjust the sensor to the ideal detecting area.
